May occur with any supraventricular

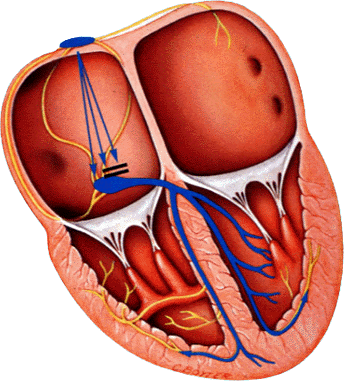

rhythm and is due to intermittent conduction from the atria to the ventricles |
-

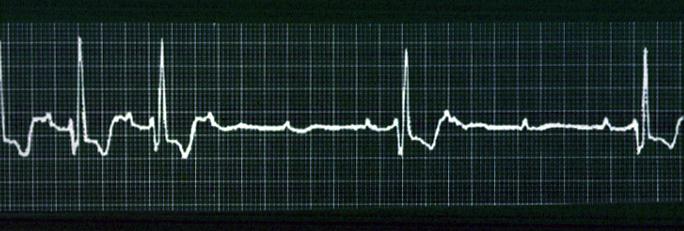

Type 1 (Wenckebach)
-
R-R interval is irregular
-
R-R interval is continuously irregular
-
R-R interval progressively shortens, then prolongs for one interval
-
P-P interval is regular
-
PR interval progressively lengthens until a single P wave is not followed
by a QRS complex
|
-
Fixed type II
-
R-R interval is regular
-
P-P interval is regular
-
P rate is a multiple of the QRS rate (2:1, 3:1, or 4:1)
-
There is a fixed relationship of P wave to QRS complexes
|
-
Varying type II
-
R-R interval is irregular
-
R-R interval varies continuously
-
P-P interval is regular
-
R-R interval is a varying multiple of P-P interval (alternating 2:1 and
3:1)
-
All R waves are preceded by a P wave with the same PR interval
|
¡ÒÃÇÔ¹Ô¨©ÑÂá¡âä
Premature atrial contraction
AV dissociation
First degree AV block, third degree AV block
|
|
