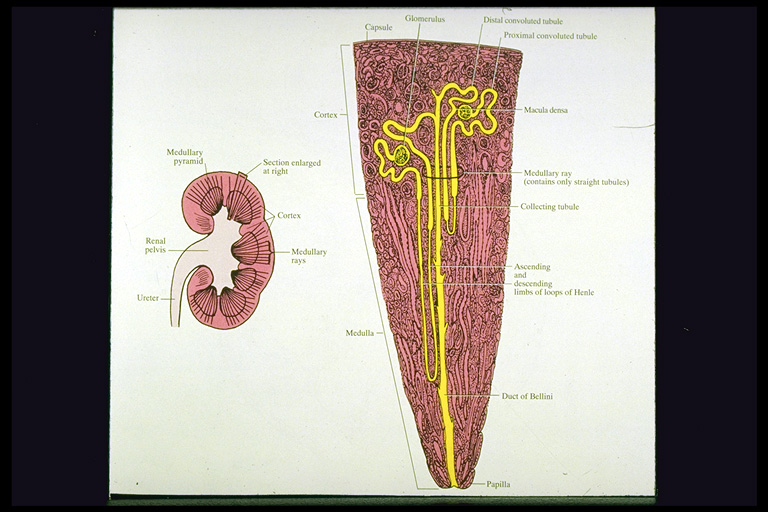

Figure 129 :ภาพ diagram ของไต ภาพซ้ายไตผ่าครึ่งซีก ภาพขวาขยายใหญ่ขึ้น แสดงความสัมพันธ์ระหว่าง nephron, collecting tubules และ ducts (สีเหลือง) กับตำแหน่งที่พบอยู่ในเนื้อ cortex และ medulla สังเกต nephron เป็น basic functional unit ของไตมีหน้าที่สร้างน้ำปัสสาวะ ท่อที่ต่อจาก nephron คือ collecting tubule ซึ่งมีหน้าที่ทำน้ำปัสสาวะให้เข้มข้น nephron หนึ่งอันประกอบด้วย renal corpuscle, proximal convoluted และ straight tubule, thin segment (loop of Henle), distal convoluted และ straight tubule โดยทั่วไปมี nephron 2 ชนิด ชนิดแรกเรียก midcortical (หรือ cortical) nephron เพราะมี loop of Henle ยื่นเข้าไปอยู่ในส่วนของ medulla เล็กน้อย นั่นคือมี thin segment ใน loop of Henle สั้น ส่วน nephron ชนิดที่ 2 เรียก juxtamedullary nephron มี loop of Henle ยาว และยื่นลึกเข้าไปใน medulla ส่วนที่เป็น straight tubules ของ nephrons ส่วนใหญ่ประกอบอยู่ในส่วนของ medullary ray (ดูเปรียบเทียบกับภาพด้านซ้าย)
(จาก Histology : A Text and Atlas, 3rd ed., by Ross et.al., 1995, pp.563)
